Bases and restraint systems for seats
A-232A Chair Base
Base to be used in combination with the legs of the vehicle seats.
ADVANTAGES:
- It allows seats to be moved, installed or replaced in the vehicle very quickly, providing great flexibility in the distribution of space in the passenger compartment.
- It consists of a steel profile which fits to the aluminium rails installed to the floor of the vehicle. It consists of eight retention pivots in its lower part, achieving an optimal distribution of the load.
- It has a ratchet mechanism that allows the seat to move freely along the rails and lock it in the desired position.
- It also has two anti-rattle mechanisms which provide a great firmness to the set once in position.
- Tested and certified in compliance with M1 and M2 standards for double and single seats.
A-300 Multi-purpose Base
Multipurpose base for non-fixed elements.
ADVANTAGES:
- Multi-purpose short base designed for fixing movable partitions, handrails, guardrails and other auxiliary elements in vehicles.
- Compatible with any rails model, recessed or surface mounted, allowing quick installation and relocation without structural modifications.
- Manufactured in high-strength duro-aluminum, machined and anodized with an optimized design to distribute load and support the clamped element efficiently.
- Equipped with a locking mechanism that guarantees stability and safety in any position.
- It incorporates an anti-rattle system that minimizes noise and guarantees a firm hold during any journey.

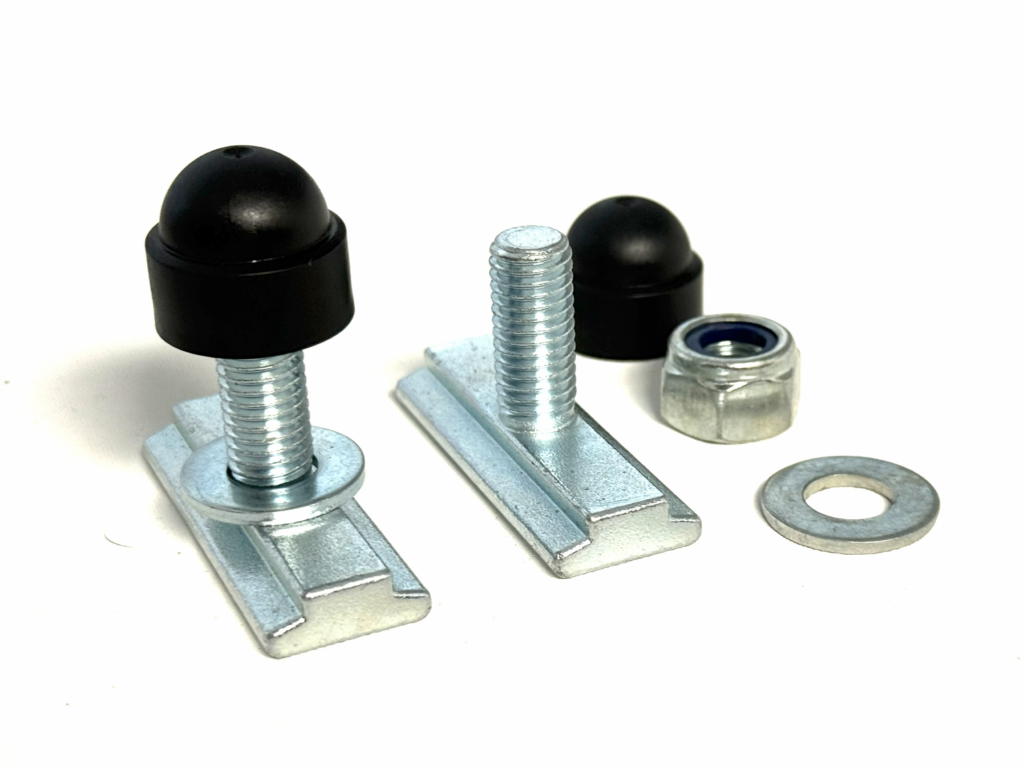

T-Bolts for seats
T-Bolts applicable to vehicle seat legs.
ADVANTAGES:
- Versatile: fits most of the vehicle's removable seats and does not cause noise.
- The most cost-effective solution to design different vehicle layouts.
- Resistant: tested for M1 loads on single seats (6 T-bolts) and M2 loads on double seats (6 T-bolts)
- Resistant: tested for M2 loads on individual seats (4 T-bolts).
- Lightweight: only 75 g each (approx.).
- Higher security design: it can only be extracted from the end of the rail.
- Thread M10 x 21.5 mm long.
- Compatible with low-profile and surface rails.
